Auxiliary Accessories
optional accessories to optimize performance
Master doser
RB095DM - The master batcher allows you to change the color of plastic material precisely, cleanly and efficiently.
Master doser with Venturi
RB095DM - Master doser with Venturi system.
Dehumidifier
RB051DE - F. Micro2000 Dehumidifier
-
chap. 1.5 dmc.
-
1/230V/50Hz -250W
-
max temp. 180°C
complete with venturi power supply with charging sensor - Babyplast adapter.
With minimal energy use, it allows you to keep the material dehumidified and at the preheating temperature, set directly above the Babyplast laminating cylinder.
WARNING: USE ONLY DEHUMIDIFIED COMPRESSED AIR

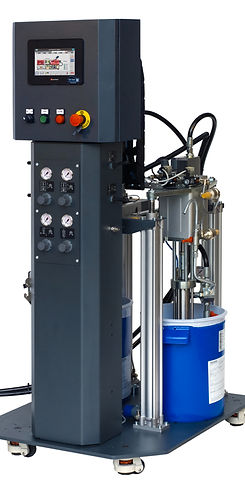

LSR pump
RB020LD - LSR pump with mixer and doser with 20Kg containers (A+B).
Bench
RB002BA - Mobile aluminum counter with swivel wheels and integrated foot. Designed for refrigerator installation.
Scrap pieces for separator
C10013300 - Pneumatic sorter for rejecting non-compliant parts. Installed on the "RB026SR" roller casting separator, it activates the machine's quality control system. For each cycle outside the set tolerance parameters, the pneumatic sorter will be activated, diverting the non-compliant parts from the casting.
Refrigerator
RB003AT - Refrigerator
-
Cooling power 3.9 kW
-
Rated power 1.5Kw
-
575x445 h.640
-
weight 77 kg
-
230V/1/50/60Hz
Thermoregulator
RB035TRM-RG - Temperature controller for Babyplast molds. Maximum temperature 90°C. Available with an interface for direct control via the machine. For mold temperatures above 90°C up to 200°C, use Babyplast electric heating elements controlled directly by the machine.
Thermoregulator
RB035TRM - Temperature controller for Babyplast molds. Maximum temperature 90°C. Available with an interface for direct control via the machine. For mold temperatures above 90°C up to 200°C, use Babyplast electric heating elements controlled directly by the machine.
Electrical panel
RB018QA - Auxiliary power panel - CE - controlled by the machine. If alarm occurs, it cuts off power to the auxiliaries.
Pneumatic guard
C10012000 - Pneumatic mold guard. Complete with two-hand control for closing/opening and starting the machine cycle.
Rotating table
RB24TR/E - Electric rotary table (diameter 170 mm) with integrated cooling circuit, for two-component molds or mold assembly. Driven by an inverter and controlled directly from the Babyplast display. For use in combination with Babyplast injection units (UAI).
Sprue separator
RB027SR - Thanks to its small size (900x100mm) and ease of installation, it is possible to separate the pieces produced from the casting in a simple and economical way.
It can be installed on all horizontal Babyplast machines.
Air Blow
​
RB017SA - Adjustable air blower, applicable to the moving plate, complete with control valve.
Hydraulic Group Martinetti
RB004MI - Hydraulic unit for the control and operation of jacks.
Venturi feeder with filter
RB081AV - Designed specifically for Babyplast. Using compressed air, it can also load difficult-to-feed granules (TPE, etc.). Lightweight: approximately 600g (compared to the 6kg of a standard feeder).
It can also be installed on a standard hopper.
Use in clean rooms: the air used for loading can be conveyed outside the room.
Control directly from the Babyplast/UAI display.
It can contain and maintain a few grams in the hopper.
CAUTION: USE ONLY DRY AIR
Picker
RB092PMF - Picker - Pneumatic gripper casting separator, for evacuating the casting at the rear of the machine.
It is installed on the back of the machine and is controlled directly from the Babyplast display. Control pages available only on 8" touchscreen displays.
